Evo 2

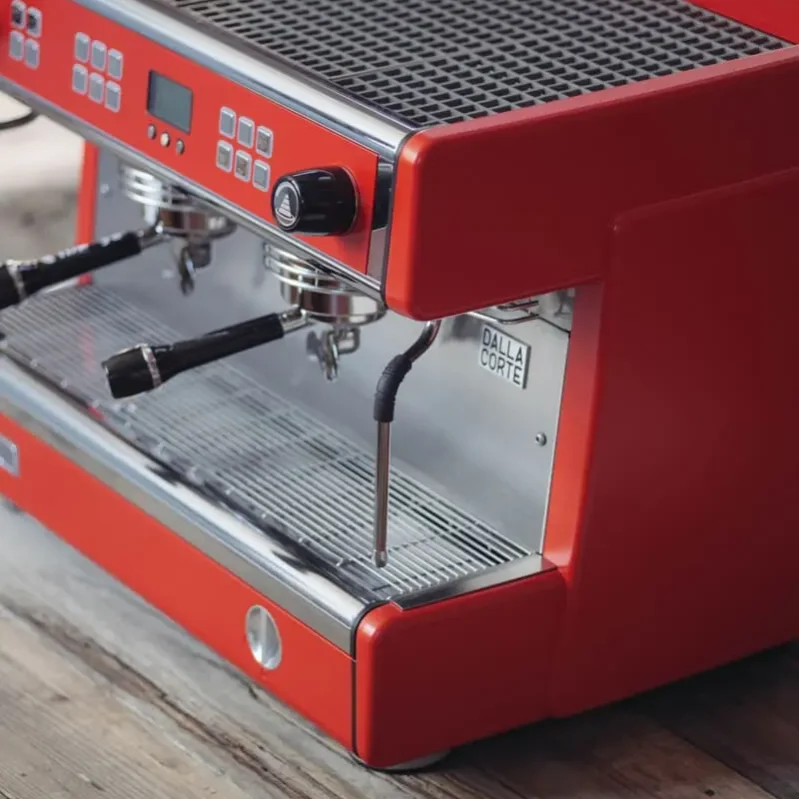

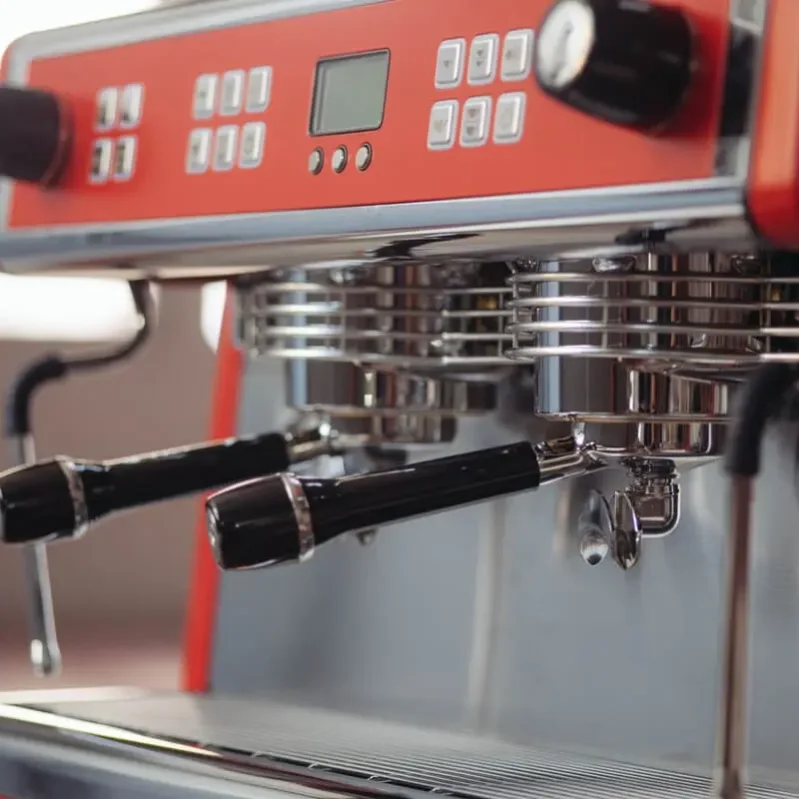

The Dalla Corte Evo2 combines proven reliability with advanced technology for demanding commercial environments. This machine features Dalla Corte’s patented multi-boiler system providing independent temperature control for each brewing group, ensuring precise temperature stability while allowing different settings at each group for diverse coffee offerings.

Technical Specifications:

2 Groups

• Dimensions (l x h x p): 730 x 510 x 525 mm
• High version dimensions (l x h x p): 730 x 525 x 525 mm
• Weight: 67 kg
• Energy consumption: 7.9 kW
• Maximum power: 4.5 kW
• Connected load: 380/400 V 3 N + T, 50/60 Hz 220/230 V, 50/60 Hz 220/230 V 3, 50/60 Hz
• Boiler capacity: 7.5 l
• Group capacity: 0.5 l

3 Groups

• Dimensions (l x h x p): 940 x 510 x 525 mm
• High version dimensions (l x h x p): 940 x 525 x 525 mm
• Weight: 83 kg
• Energy consumption: 11.3 kW
• Maximum power: 6.3 kW
• Connected load: 380/400 V 3 N + T, 50/60 Hz 220/230 V, 50/60 Hz 220/230 V 3, 50/60 Hz
• Boiler capacity: 13 l
• Group capacity: 0.5 l

4 Groups

• Dimensions (l x h x p): 1150 x 510 x 525 mm
• High version dimensions (l x h x p): 1150 x 525 x 525 mm
• Weight: 100 kg
• Energy consumption: 13.0 kW
• Maximum power: 7.2 kW
• Connected load: 380/400 V 3 N + T, 50/60 Hz 220/230 V, 50/60 Hz 220/230 V 3, 50/60 Hz
• Boiler capacity: 13 l
• Group capacity: 0.5 l

Features:

• THERMAL STABILITY: Patented multiboiler technology with 0.1° temperature precision.

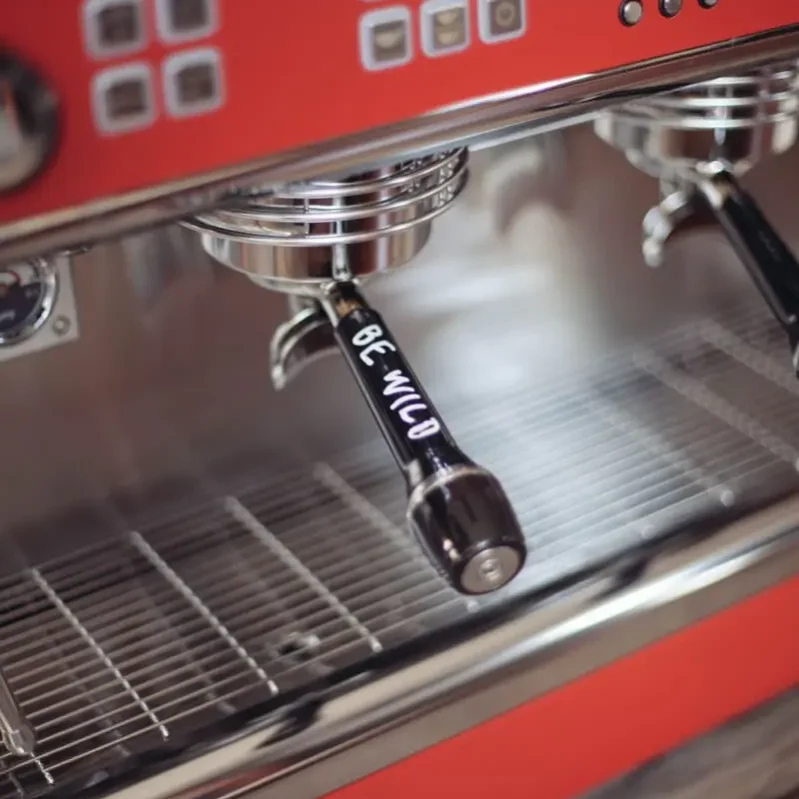

• FUNCTIONAL: 54 mm-diameter portafilter, ergonomic handgrips, easy milk frothing. DC System compatible (GCS, MCS, OCS).
• SUSTAINABLE: Independent groups allow unused brewing groups or boiler to be switched off. Leadfree parts (CW510L) and recyclable materials.
